CircularProgressIndicator

Composable Component

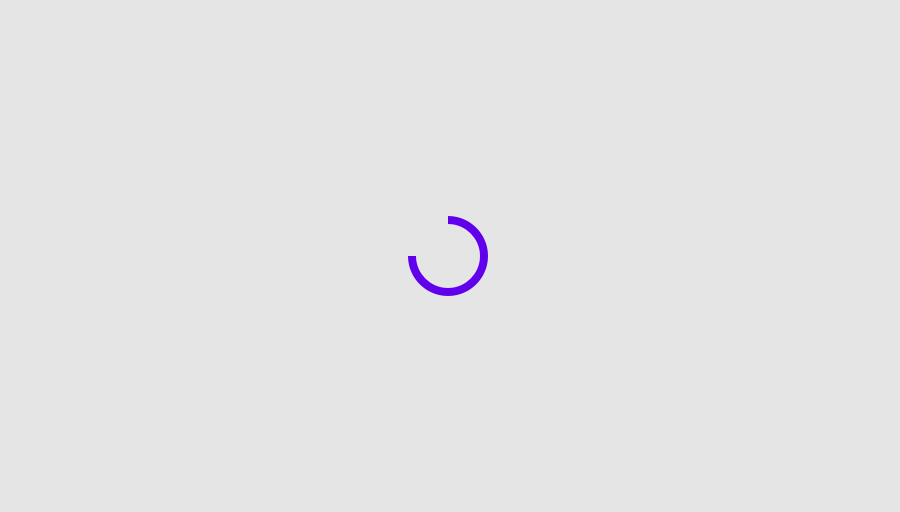

Determinate Material Design circular progress indicator.

Common

@Composable
fun CircularProgressIndicator(
    @FloatRange(from = 0.0, to = 1.0) progress: Float,
    modifier: Modifier = Modifier,
    color: Color = MaterialTheme.colors.primary,
    strokeWidth: Dp = ProgressIndicatorDefaults.StrokeWidth,
    backgroundColor: Color = Color.Transparent,
    strokeCap: StrokeCap = StrokeCap.Butt,
)

Parameters


progress	The progress of this progress indicator, where 0.0 represents no progress and 1.0 represents full progress. Values outside of this range are coerced into the range.
modifier	the `Modifier` to be applied to this progress indicator
color	The color of the progress indicator.
strokeWidth	The stroke width for the progress indicator.
backgroundColor	The color of the background behind the indicator, visible when the progress has not reached that area of the overall indicator yet.
strokeCap	stroke cap to use for the ends of this progress indicator

Common

@Composable
fun CircularProgressIndicator(
    modifier: Modifier = Modifier,
    color: Color = MaterialTheme.colors.primary,
    strokeWidth: Dp = ProgressIndicatorDefaults.StrokeWidth,
    backgroundColor: Color = Color.Transparent,
    strokeCap: StrokeCap = StrokeCap.Square,
)

Parameters


modifier	the `Modifier` to be applied to this progress indicator
color	The color of the progress indicator.
strokeWidth	The stroke width for the progress indicator.
backgroundColor	The color of the background behind the indicator, visible when the progress has not reached that area of the overall indicator yet.
strokeCap	stroke cap to use for the ends of this progress indicator

Common

Deprecated Maintained for binary compatibility

@Composable
fun CircularProgressIndicator(
    progress: Float,
    modifier: Modifier = Modifier,
    color: Color = MaterialTheme.colors.primary,
    strokeWidth: Dp = ProgressIndicatorDefaults.StrokeWidth,
) =
    CircularProgressIndicator(
        progress,
        modifier,
        color,
        strokeWidth,
        backgroundColor = Color.Transparent,
        strokeCap = StrokeCap.Butt,
    )

Common

Deprecated Maintained for binary compatibility

@Composable
fun CircularProgressIndicator(
    modifier: Modifier = Modifier,
    color: Color = MaterialTheme.colors.primary,
    strokeWidth: Dp = ProgressIndicatorDefaults.StrokeWidth,
) =
    CircularProgressIndicator(
        modifier,
        color,
        strokeWidth,
        backgroundColor = Color.Transparent,
        strokeCap = StrokeCap.Square,
    )

Code Examples

CircularProgressIndicatorSample

@Composable
fun CircularProgressIndicatorSample() {
    var progress by remember { mutableStateOf(0.1f) }
    val animatedProgress by
        animateFloatAsState(
            targetValue = progress,
            animationSpec = ProgressIndicatorDefaults.ProgressAnimationSpec,
        )
    Column(horizontalAlignment = Alignment.CenterHorizontally) {
        CircularProgressIndicator(progress = animatedProgress)
        Spacer(Modifier.requiredHeight(30.dp))
        OutlinedButton(onClick = { if (progress < 1f) progress += 0.1f }) { Text("Increase") }
    }
}
