Slider

Composable Component

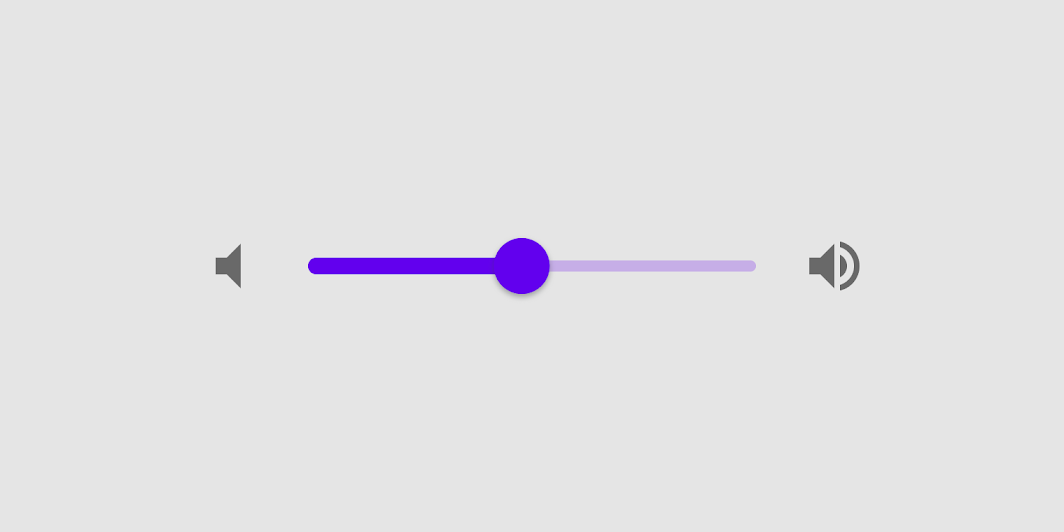

Sliders allow users to make selections from a range of values.

Common

@Composable
fun Slider(
    value: Float,
    onValueChange: (Float) -> Unit,
    modifier: Modifier = Modifier,
    enabled: Boolean = true,
    valueRange: ClosedFloatingPointRange<Float> = 0f..1f,
    @IntRange(from = 0) steps: Int = 0,
    onValueChangeFinished: (() -> Unit)? = null,
    interactionSource: MutableInteractionSource? = null,
    colors: SliderColors = SliderDefaults.colors(),
)

Parameters


value	current value of the Slider. If outside of `valueRange` provided, value will be coerced to this range.
onValueChange	lambda in which value should be updated
modifier	modifiers for the Slider layout
enabled	whether or not component is enabled and can be interacted with or not
valueRange	range of values that Slider value can take. Passed `value` will be coerced to this range
steps	if positive, specifies the amount of discrete allowable values between the endpoints of `valueRange`. For example, a range from 0 to 10 with 4 `steps` allows 4 values evenly distributed between 0 and 10 (i.e., 2, 4, 6, 8). If `steps` is 0, the slider will behave continuously and allow any value from the range. Must not be negative.
onValueChangeFinished	lambda to be invoked when value change has ended. This callback shouldn't be used to update the slider value (use `onValueChange` for that), but rather to know when the user has completed selecting a new value by ending a drag or a click.
interactionSource	an optional hoisted `MutableInteractionSource` for observing and emitting `Interaction`s for this slider. You can use this to change the slider's appearance or preview the slider in different states. Note that if `null` is provided, interactions will still happen internally.
colors	`SliderColors` that will be used to determine the color of the Slider parts in different state. See `SliderDefaults.colors` to customize.

Code Examples

SliderSample

@Composable
fun SliderSample() {
    var sliderPosition by remember { mutableStateOf(0f) }
    Column(modifier = Modifier.padding(horizontal = 16.dp)) {
        Text(text = "%.2f".format(sliderPosition))
        Slider(value = sliderPosition, onValueChange = { sliderPosition = it })
    }
}

StepsSliderSample

@Composable
fun StepsSliderSample() {
    var sliderPosition by remember { mutableStateOf(0f) }
    Column(modifier = Modifier.padding(horizontal = 16.dp)) {
        Text(text = sliderPosition.roundToInt().toString())
        Slider(
            value = sliderPosition,
            onValueChange = { sliderPosition = it },
            valueRange = 0f..100f,
            onValueChangeFinished = {
                // launch some business logic update with the state you hold
                // viewModel.updateSelectedSliderValue(sliderPosition)
            },
            // Only allow multiples of 10. Excluding the endpoints of `valueRange`,
            // there are 9 steps (10, 20, ..., 90).
            steps = 9,
            colors =
                SliderDefaults.colors(
                    thumbColor = MaterialTheme.colors.secondary,
                    activeTrackColor = MaterialTheme.colors.secondary,
                ),
        )
    }
}
