SurfaceTransformation

public interface SurfaceTransformation

Object to be used to apply different transformation to the content and the container (i.e. the background) of the composable.

This interface allows you to customize the appearance of a surface by modifying the container painter and applying visual transformations to the content. In this context, a surface is a container composable that displays content (which could use other Composables such as Icon, Text or Button) as well as a background typically drawn using a painter. This is useful for creating custom effects like scaling, rotation, or applying shaders.

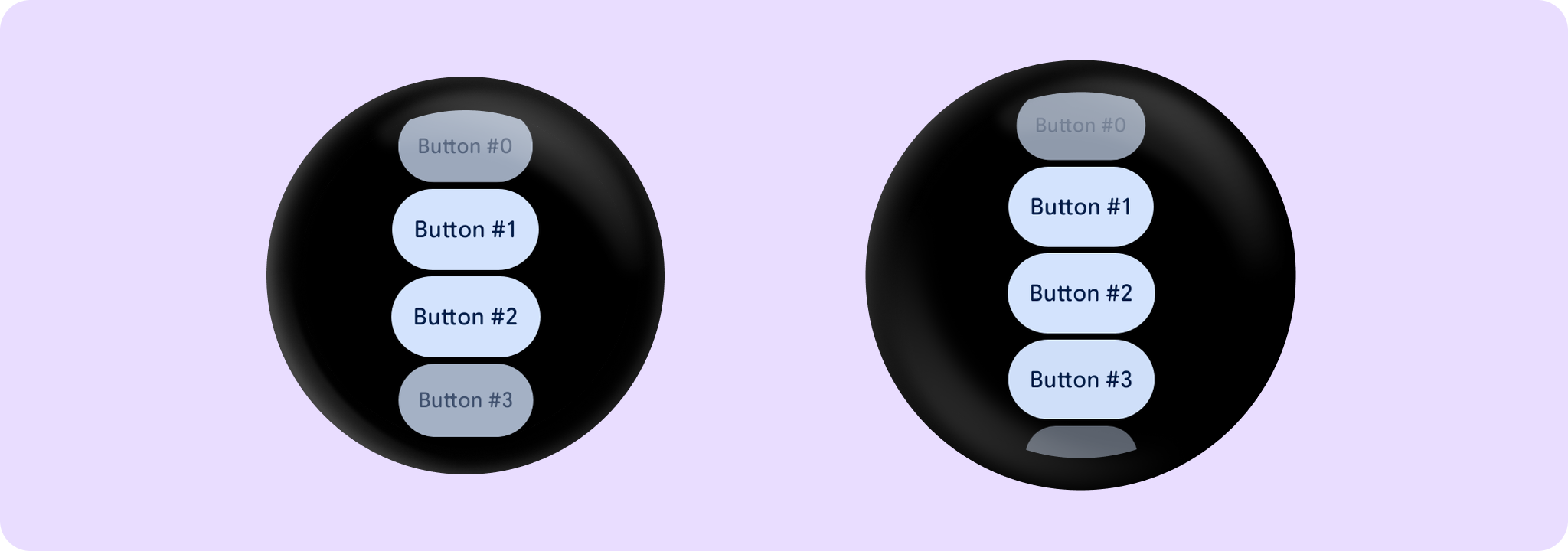

Example usage with the Button:

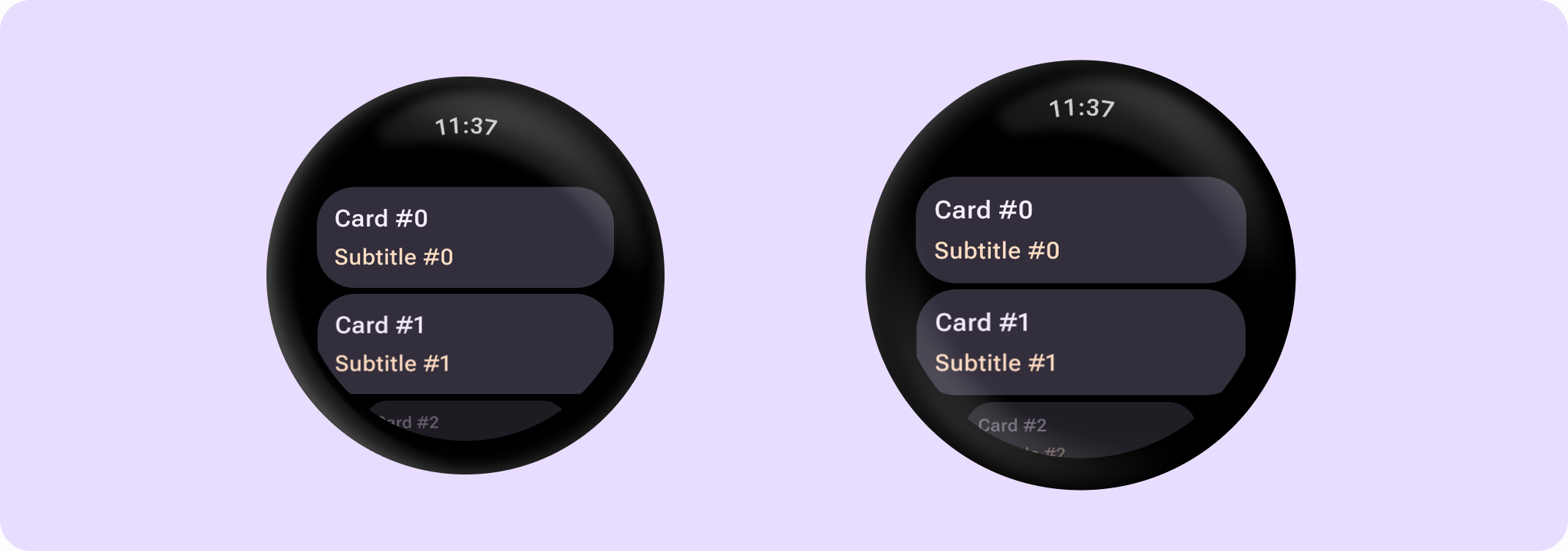

Example usage with the Card:

Example of adding support in a custom component:

Functions

createContainerPainter

public fun createContainerPainter(
        painter: Painter,
        shape: Shape,
        border: BorderStroke? = null,
    ): Painter

Returns a new painter to be used instead of painter which should react on a transformation.

This allows the transformation to modify the container painter based on properties like the shape or border. For example, a transformation might apply a gradient that follows the shape of the surface.

Parameters

applyContainerTransformation

public fun GraphicsLayerScope.applyContainerTransformation()

Visual transformations to be applied to the container of the item.

This function is called within a GraphicsLayerScope, allowing you to use properties like scaleX, scaleY, rotationZ, alpha, and others to transform the content.

applyContentTransformation

public fun GraphicsLayerScope.applyContentTransformation()

Visual transformations to be applied to the content of the item.

This function is called within a GraphicsLayerScope, allowing you to use properties like scaleX, scaleY, rotationZ, alpha, and others to transform the content.
