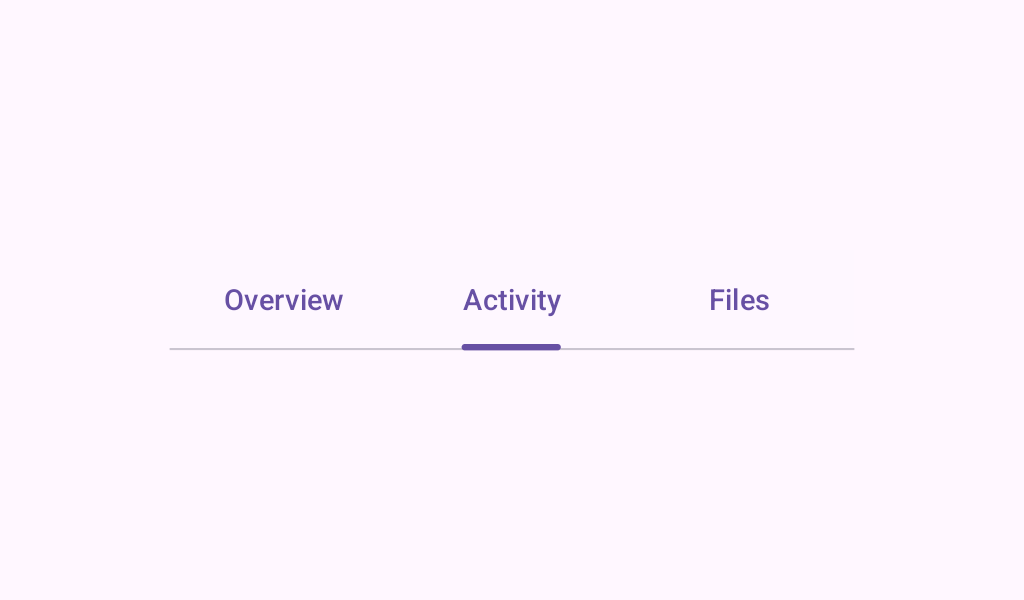

Material Design fixed primary tabs Primary tabs are placed at the top of the content pane under a top app bar.
PrimaryTextTabs
@Preview
@Composable
@Sampled
@OptIn(ExperimentalMaterial3Api::class)
fun PrimaryTextTabs() {
var state by rememberSaveable { mutableStateOf(0) }
val titles = listOf("Tab 1", "Tab 2", "Tab 3 with lots of text")
Column {
PrimaryTabRow(selectedTabIndex = state) {
titles.forEachIndexed { index, title ->
Tab(
selected = state == index,
onClick = { state = index },
text = { Text(text = title, maxLines = 2, overflow = TextOverflow.Ellipsis) },
)
}
}
Text(
modifier = Modifier.align(Alignment.CenterHorizontally),
text = "Primary tab ${state + 1} selected",
style = MaterialTheme.typography.bodyLarge,
)
}
}
FancyTabs
@Preview
@Sampled
@Composable
@OptIn(ExperimentalMaterial3Api::class)
fun FancyTabs() {
var state by rememberSaveable { mutableStateOf(0) }
val titles = listOf("Tab 1", "Tab 2", "Tab 3")
Column {
SecondaryTabRow(selectedTabIndex = state) {
titles.forEachIndexed { index, title ->
FancyTab(title = title, onClick = { state = index }, selected = (index == state))
}
}
Text(
modifier = Modifier.align(Alignment.CenterHorizontally),
text = "Fancy tab ${state + 1} selected",
style = MaterialTheme.typography.bodyLarge,
)
}
}
FancyTab
@Sampled
@Composable
fun FancyTab(title: String, onClick: () -> Unit, selected: Boolean) {
Tab(selected, onClick) {
Column(
Modifier.padding(10.dp).height(50.dp).fillMaxWidth(),
verticalArrangement = Arrangement.SpaceBetween,
) {
Box(
Modifier.size(10.dp)
.align(Alignment.CenterHorizontally)
.background(
color =
if (selected) MaterialTheme.colorScheme.primary
else MaterialTheme.colorScheme.background
)
)
Text(
text = title,
style = MaterialTheme.typography.bodyLarge,
modifier = Modifier.align(Alignment.CenterHorizontally),
)
}
}
}
FancyIndicator
@Sampled
@Composable
fun FancyIndicator(color: Color, modifier: Modifier = Modifier) {
// Draws a rounded rectangular with border around the Tab, with a 5.dp padding from the edges
// Color is passed in as a parameter [color]
Box(
modifier
.padding(5.dp)
.fillMaxSize()
.border(BorderStroke(2.dp, color), RoundedCornerShape(5.dp))
)
}
FancyIndicatorTabs
@Preview
@Sampled
@Composable
@OptIn(ExperimentalMaterial3Api::class)
fun FancyIndicatorTabs() {
var state by rememberSaveable { mutableStateOf(0) }
val titles = listOf("Tab 1", "Tab 2", "Tab 3")
Column {
SecondaryTabRow(
selectedTabIndex = state,
indicator = {
FancyIndicator(
MaterialTheme.colorScheme.primary,
Modifier.tabIndicatorOffset(state),
)
},
) {
titles.forEachIndexed { index, title ->
Tab(selected = state == index, onClick = { state = index }, text = { Text(title) })
}
}
Text(
modifier = Modifier.align(Alignment.CenterHorizontally),
text = "Fancy indicator tab ${state + 1} selected",
style = MaterialTheme.typography.bodyLarge,
)
}
}
FancyIndicatorContainerTabs
@Preview
@Sampled
@Composable
@OptIn(ExperimentalMaterial3Api::class)
fun FancyIndicatorContainerTabs() {
var state by rememberSaveable { mutableStateOf(0) }
val titles = listOf("Tab 1", "Tab 2", "Tab 3")
Column {
SecondaryTabRow(
selectedTabIndex = state,
indicator = { FancyAnimatedIndicatorWithModifier(state) },
) {
titles.forEachIndexed { index, title ->
Tab(selected = state == index, onClick = { state = index }, text = { Text(title) })
}
}
Text(
modifier = Modifier.align(Alignment.CenterHorizontally),
text = "Fancy transition tab ${state + 1} selected",
style = MaterialTheme.typography.bodyLarge,
)
}
}
