Compose Component

VerticalFloatingToolbar

A vertical floating toolbar displays navigation and key actions in a Column.

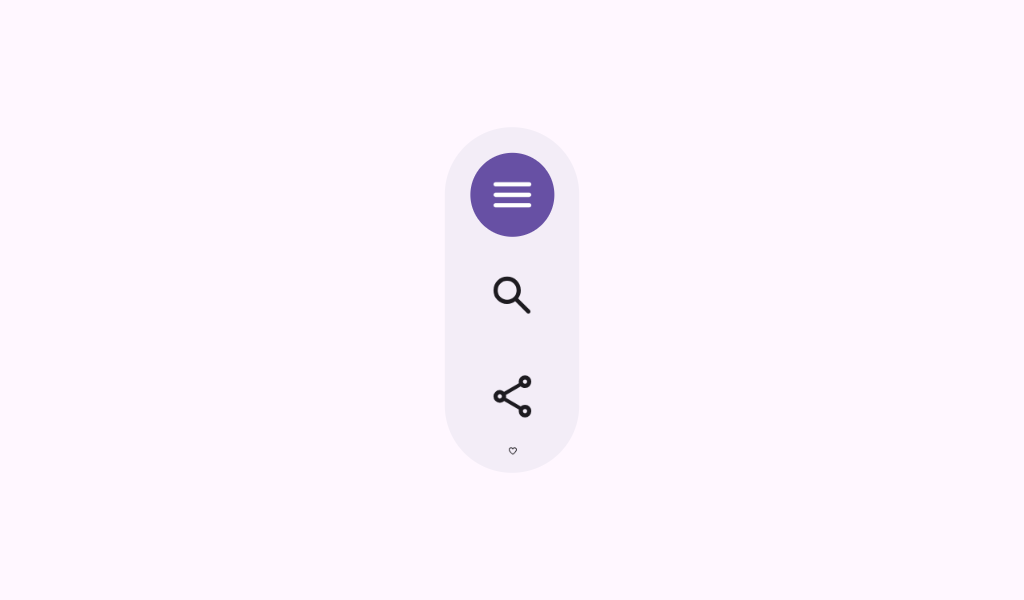

VerticalFloatingToolbar social preview

ExpandableVerticalFloatingToolbarSample

@OptIn(ExperimentalMaterial3Api::class)
@Preview
@Sampled
@Composable
fun ExpandableVerticalFloatingToolbarSample() {
    var expanded by rememberSaveable { mutableStateOf(true) }
    Scaffold(
        content = { innerPadding ->
            Box(Modifier.padding(innerPadding)) {
                // The toolbar should receive focus before the screen content for a11y, so place it
                // first. Make sure to set its zIndex so it's above the screen content visually.
                VerticalFloatingToolbar(
                    modifier =
                        Modifier.align(Alignment.CenterEnd).offset(x = -ScreenOffset).zIndex(1f),
                    expanded = expanded,
                    leadingContent = { LeadingContent() },
                    trailingContent = { TrailingContent() },
                    content = {
                        TooltipBox(
                            positionProvider =
                                TooltipDefaults.rememberTooltipPositionProvider(
                                    TooltipAnchorPosition.Above
                                ),
                            tooltip = {
                                PlainTooltip(
                                    modifier =
                                        Modifier.semantics {
                                            // TODO(b/496338253): Remove this modifier once bug
                                            //  where tooltip text is not announced by a11y screen
                                            //  readers is resolved.
                                            liveRegion = LiveRegionMode.Assertive
                                            paneTitle = "Localized description"
                                        }
                                ) {
                                    Text("Localized description")
                                }
                            },
                            state = rememberTooltipState(),
                        ) {
                            FilledIconButton(
                                modifier = Modifier.height(64.dp),
                                onClick = { /* doSomething() */ },
                            ) {
                                Icon(Icons.Filled.Add, contentDescription = "Localized description")
                            }
                        }
                    },
                )
                LazyColumn(
                    // Apply a floatingToolbarVerticalNestedScroll Modifier toggle the expanded
                    // state of the HorizontalFloatingToolbar.
                    modifier =
                        Modifier.floatingToolbarVerticalNestedScroll(
                            expanded = expanded,
                            onExpand = { expanded = true },
                            onCollapse = { expanded = false },
                        ),
                    state = rememberLazyListState(),
                    contentPadding = innerPadding,
                    verticalArrangement = Arrangement.spacedBy(8.dp),
                ) {
                    val list = (0..75).map { it.toString() }
                    items(count = list.size) {
                        Text(
                            text = list[it],
                            style = MaterialTheme.typography.bodyLarge,
                            modifier = Modifier.fillMaxWidth().padding(horizontal = 16.dp),
                        )
                    }
                }
            }
        }
    )
}

OverflowingVerticalFloatingToolbarSample

@OptIn(ExperimentalMaterial3Api::class)
@Preview
@Sampled
@Composable
fun OverflowingVerticalFloatingToolbarSample() {
    Scaffold(
        content = { innerPadding ->
            Box(Modifier.padding(innerPadding)) {
                // The toolbar should receive focus before the screen content for a11y, so place it
                // first. Make sure to set its zIndex so it's above the screen content visually.
                VerticalFloatingToolbar(
                    modifier =
                        Modifier.align(Alignment.CenterEnd).offset(x = -ScreenOffset).zIndex(1f),
                    expanded = true,
                    leadingContent = { LeadingContent() },
                    trailingContent = {
                        AppBarColumn {
                            clickableItem(
                                onClick = { /* doSomething() */ },
                                icon = {
                                    Icon(
                                        Icons.Filled.Download,
                                        contentDescription = "Localized description",
                                    )
                                },
                                label = "Download",
                            )
                            clickableItem(
                                onClick = { /* doSomething() */ },
                                icon = {
                                    Icon(
                                        Icons.Filled.Favorite,
                                        contentDescription = "Localized description",
                                    )
                                },
                                label = "Favorite",
                            )
                            clickableItem(
                                onClick = { /* doSomething() */ },
                                icon = {
                                    Icon(
                                        Icons.Filled.Add,
                                        contentDescription = "Localized description",
                                    )
                                },
                                label = "Add",
                            )
                            clickableItem(
                                onClick = { /* doSomething() */ },
                                icon = {
                                    Icon(
                                        Icons.Filled.Person,
                                        contentDescription = "Localized description",
                                    )
                                },
                                label = "Person",
                            )
                            clickableItem(
                                onClick = { /* doSomething() */ },
                                icon = {
                                    Icon(
                                        Icons.Filled.ArrowUpward,
                                        contentDescription = "Localized description",
                                    )
                                },
                                label = "ArrowUpward",
                            )
                        }
                    },
                    content = {
                        TooltipBox(
                            positionProvider =
                                TooltipDefaults.rememberTooltipPositionProvider(
                                    TooltipAnchorPosition.Above
                                ),
                            tooltip = {
                                PlainTooltip(
                                    modifier =
                                        Modifier.semantics {
                                            // TODO(b/496338253): Remove this modifier once bug
                                            //  where tooltip text is not announced by a11y screen
                                            //  readers is resolved.
                                            liveRegion = LiveRegionMode.Assertive
                                            paneTitle = "Localized description"
                                        }
                                ) {
                                    Text("Localized description")
                                }
                            },
                            state = rememberTooltipState(),
                        ) {
                            FilledIconButton(
                                modifier = Modifier.height(64.dp),
                                onClick = { /* doSomething() */ },
                            ) {
                                Icon(Icons.Filled.Add, contentDescription = "Localized description")
                            }
                        }
                    },
                )
                LazyColumn(
                    state = rememberLazyListState(),
                    contentPadding = innerPadding,
                    verticalArrangement = Arrangement.spacedBy(8.dp),
                ) {
                    val list = (0..75).map { it.toString() }
                    items(count = list.size) {
                        Text(
                            text = list[it],
                            style = MaterialTheme.typography.bodyLarge,
                            modifier = Modifier.fillMaxWidth().padding(horizontal = 16.dp),
                        )
                    }
                }
            }
        }
    )
}

ScrollableVerticalFloatingToolbarSample

@OptIn(ExperimentalMaterial3Api::class)
@Preview
@Sampled
@Composable
fun ScrollableVerticalFloatingToolbarSample() {
    val exitAlwaysScrollBehavior =
        FloatingToolbarDefaults.exitAlwaysScrollBehavior(exitDirection = End)
    Scaffold(
        modifier = Modifier.nestedScroll(exitAlwaysScrollBehavior),
        content = { innerPadding ->
            Box(Modifier.padding(innerPadding)) {
                // The toolbar should receive focus before the screen content for a11y, so place it
                // first. Make sure to set its zIndex so it's above the screen content visually.
                VerticalFloatingToolbar(
                    modifier =
                        Modifier.align(Alignment.CenterEnd).offset(x = -ScreenOffset).zIndex(1f),
                    expanded = true,
                    leadingContent = { LeadingContent() },
                    trailingContent = { TrailingContent() },
                    content = {
                        TooltipBox(
                            positionProvider =
                                TooltipDefaults.rememberTooltipPositionProvider(
                                    TooltipAnchorPosition.Above
                                ),
                            tooltip = {
                                PlainTooltip(
                                    modifier =
                                        Modifier.semantics {
                                            // TODO(b/496338253): Remove this modifier once bug
                                            //  where tooltip text is not announced by a11y screen
                                            //  readers is resolved.
                                            liveRegion = LiveRegionMode.Assertive
                                            paneTitle = "Localized description"
                                        }
                                ) {
                                    Text("Localized description")
                                }
                            },
                            state = rememberTooltipState(),
                        ) {
                            FilledIconButton(
                                modifier = Modifier.height(64.dp),
                                onClick = { /* doSomething() */ },
                            ) {
                                Icon(Icons.Filled.Add, contentDescription = "Localized description")
                            }
                        }
                    },
                    scrollBehavior = exitAlwaysScrollBehavior,
                )
                LazyColumn(
                    state = rememberLazyListState(),
                    contentPadding = innerPadding,
                    verticalArrangement = Arrangement.spacedBy(8.dp),
                ) {
                    val list = (0..75).map { it.toString() }
                    items(count = list.size) {
                        Text(
                            text = list[it],
                            style = MaterialTheme.typography.bodyLarge,
                            modifier = Modifier.fillMaxWidth().padding(horizontal = 16.dp),
                        )
                    }
                }
            }
        },
    )
}

VerticalFloatingToolbarWithFabSample

@OptIn(ExperimentalMaterial3Api::class)
@Preview
@Sampled
@Composable
fun VerticalFloatingToolbarWithFabSample() {
    var expanded by rememberSaveable { mutableStateOf(true) }
    val vibrantColors = FloatingToolbarDefaults.vibrantFloatingToolbarColors()
    Scaffold { innerPadding ->
        Box(Modifier.padding(innerPadding)) {
            // The toolbar should receive focus before the screen content for a11y, so place it
            // first. Make sure to set its zIndex so it's above the screen content visually.
            VerticalFloatingToolbar(
                expanded = expanded,
                floatingActionButton = {
                    TooltipBox(
                        positionProvider =
                            TooltipDefaults.rememberTooltipPositionProvider(
                                TooltipAnchorPosition.Above
                            ),
                        tooltip = {
                            PlainTooltip(
                                modifier =
                                    Modifier.semantics {
                                        // TODO(b/496338253): Remove this modifier once bug where
                                        //  tooltip text is not announced by a11y screen readers is
                                        //  resolved.
                                        liveRegion = LiveRegionMode.Assertive
                                        paneTitle = "Localized description"
                                    }
                            ) {
                                Text("Localized description")
                            }
                        },
                        state = rememberTooltipState(),
                    ) {
                        // Match the FAB to the vibrantColors. See also
                        // StandardFloatingActionButton.
                        FloatingToolbarDefaults.VibrantFloatingActionButton(
                            onClick = { expanded = !expanded }
                        ) {
                            Icon(Icons.Filled.Add, "Localized description")
                        }
                    }
                },
                modifier =
                    Modifier.align(Alignment.BottomEnd)
                        .offset(x = -ScreenOffset, y = -ScreenOffset)
                        .zIndex(1f),
                colors = vibrantColors,
                content = {
                    // Make sure the buttons are not focusable if they are not visible, so that
                    // keyboard focus doesn't go to an invisible element on the screen.
                    TooltipBox(
                        positionProvider =
                            TooltipDefaults.rememberTooltipPositionProvider(
                                TooltipAnchorPosition.Above
                            ),
                        tooltip = {
                            PlainTooltip(
                                modifier =
                                    Modifier.semantics {
                                        // TODO(b/496338253): Remove this modifier once bug where
                                        //  tooltip text is not announced by a11y screen readers is
                                        //  resolved.
                                        liveRegion = LiveRegionMode.Assertive
                                        paneTitle = "Localized description"
                                    }
                            ) {
                                Text("Localized description")
                            }
                        },
                        state = rememberTooltipState(),
                    ) {
                        IconButton(
                            onClick = { /* doSomething() */ },
                            Modifier.focusProperties { canFocus = expanded },
                        ) {
                            Icon(Icons.Filled.Person, contentDescription = "Localized description")
                        }
                    }
                    TooltipBox(
                        positionProvider =
                            TooltipDefaults.rememberTooltipPositionProvider(
                                TooltipAnchorPosition.Above
                            ),
                        tooltip = {
                            PlainTooltip(
                                modifier =
                                    Modifier.semantics {
                                        // TODO(b/496338253): Remove this modifier once bug where
                                        //  tooltip text is not announced by a11y screen readers is
                                        //  resolved.
                                        liveRegion = LiveRegionMode.Assertive
                                        paneTitle = "Localized description"
                                    }
                            ) {
                                Text("Localized description")
                            }
                        },
                        state = rememberTooltipState(),
                    ) {
                        IconButton(
                            onClick = { /* doSomething() */ },
                            Modifier.focusProperties { canFocus = expanded },
                        ) {
                            Icon(Icons.Filled.Edit, contentDescription = "Localized description")
                        }
                    }
                    TooltipBox(
                        positionProvider =
                            TooltipDefaults.rememberTooltipPositionProvider(
                                TooltipAnchorPosition.Above
                            ),
                        tooltip = {
                            PlainTooltip(
                                modifier =
                                    Modifier.semantics {
                                        // TODO(b/496338253): Remove this modifier once bug where
                                        //  tooltip text is not announced by a11y screen readers is
                                        //  resolved.
                                        liveRegion = LiveRegionMode.Assertive
                                        paneTitle = "Localized description"
                                    }
                            ) {
                                Text("Localized description")
                            }
                        },
                        state = rememberTooltipState(),
                    ) {
                        IconButton(
                            onClick = { /* doSomething() */ },
                            Modifier.focusProperties { canFocus = expanded },
                        ) {
                            Icon(
                                Icons.Filled.Favorite,
                                contentDescription = "Localized description",
                            )
                        }
                    }
                    TooltipBox(
                        positionProvider =
                            TooltipDefaults.rememberTooltipPositionProvider(
                                TooltipAnchorPosition.Above
                            ),
                        tooltip = {
                            PlainTooltip(
                                modifier =
                                    Modifier.semantics {
                                        // TODO(b/496338253): Remove this modifier once bug where
                                        //  tooltip text is not announced by a11y screen readers is
                                        //  resolved.
                                        liveRegion = LiveRegionMode.Assertive
                                        paneTitle = "Localized description"
                                    }
                            ) {
                                Text("Localized description")
                            }
                        },
                        state = rememberTooltipState(),
                    ) {
                        IconButton(
                            onClick = { /* doSomething() */ },
                            Modifier.focusProperties { canFocus = expanded },
                        ) {
                            Icon(
                                Icons.Filled.MoreVert,
                                contentDescription = "Localized description",
                            )
                        }
                    }
                },
            )
            Column(
                Modifier.fillMaxWidth()
                    .padding(horizontal = 16.dp)
                    // Apply a floatingToolbarVerticalNestedScroll Modifier to the Column to toggle
                    // the expanded state of the VerticalFloatingToolbar.
                    .then(
                        Modifier.floatingToolbarVerticalNestedScroll(
                            expanded = expanded,
                            onExpand = { expanded = true },
                            onCollapse = { expanded = false },
                        )
                    )
                    .verticalScroll(rememberScrollState())
            ) {
                Text(text = remember { LoremIpsum().values.first() })
            }
        }
    }
}

CenteredVerticalFloatingToolbarWithFabSample

@OptIn(ExperimentalMaterial3Api::class)
@Preview
@Sampled
@Composable
fun CenteredVerticalFloatingToolbarWithFabSample() {
    val exitAlwaysScrollBehavior =
        FloatingToolbarDefaults.exitAlwaysScrollBehavior(exitDirection = End)
    val vibrantColors = FloatingToolbarDefaults.vibrantFloatingToolbarColors()
    Scaffold(modifier = Modifier.nestedScroll(exitAlwaysScrollBehavior)) { innerPadding ->
        Box(Modifier.padding(innerPadding)) {
            // The toolbar should receive focus before the screen content for a11y, so place it
            // first. Make sure to set its zIndex so it's above the screen content visually.
            VerticalFloatingToolbar(
                // Always expanded as the toolbar is right-centered. We will use a
                // FloatingToolbarScrollBehavior to hide both the toolbar and its FAB on scroll.
                expanded = true,
                floatingActionButton = {
                    TooltipBox(
                        positionProvider =
                            TooltipDefaults.rememberTooltipPositionProvider(
                                TooltipAnchorPosition.Above
                            ),
                        tooltip = {
                            PlainTooltip(
                                modifier =
                                    Modifier.semantics {
                                        // TODO(b/496338253): Remove this modifier once bug where
                                        //  tooltip text is not announced by a11y screen readers is
                                        //  resolved.
                                        liveRegion = LiveRegionMode.Assertive
                                        paneTitle = "Localized description"
                                    }
                            ) {
                                Text("Localized description")
                            }
                        },
                        state = rememberTooltipState(),
                    ) {
                        // Match the FAB to the vibrantColors. See also
                        // StandardFloatingActionButton.
                        FloatingToolbarDefaults.VibrantFloatingActionButton(
                            onClick = { /* doSomething() */ }
                        ) {
                            Icon(Icons.Filled.Add, "Localized description")
                        }
                    }
                },
                modifier = Modifier.align(Alignment.CenterEnd).offset(x = -ScreenOffset).zIndex(1f),
                colors = vibrantColors,
                scrollBehavior = exitAlwaysScrollBehavior,
                content = {
                    TooltipBox(
                        positionProvider =
                            TooltipDefaults.rememberTooltipPositionProvider(
                                TooltipAnchorPosition.Above
                            ),
                        tooltip = {
                            PlainTooltip(
                                modifier =
                                    Modifier.semantics {
                                        // TODO(b/496338253): Remove this modifier once bug where
                                        //  tooltip text is not announced by a11y screen readers is
                                        //  resolved.
                                        liveRegion = LiveRegionMode.Assertive
                                        paneTitle = "Localized description"
                                    }
                            ) {
                                Text("Localized description")
                            }
                        },
                        state = rememberTooltipState(),
                    ) {
                        IconButton(onClick = { /* doSomething() */ }) {
                            Icon(Icons.Filled.Person, contentDescription = "Localized description")
                        }
                    }
                    TooltipBox(
                        positionProvider =
                            TooltipDefaults.rememberTooltipPositionProvider(
                                TooltipAnchorPosition.Above
                            ),
                        tooltip = {
                            PlainTooltip(
                                modifier =
                                    Modifier.semantics {
                                        // TODO(b/496338253): Remove this modifier once bug where
                                        //  tooltip text is not announced by a11y screen readers is
                                        //  resolved.
                                        liveRegion = LiveRegionMode.Assertive
                                        paneTitle = "Localized description"
                                    }
                            ) {
                                Text("Localized description")
                            }
                        },
                        state = rememberTooltipState(),
                    ) {
                        IconButton(onClick = { /* doSomething() */ }) {
                            Icon(Icons.Filled.Edit, contentDescription = "Localized description")
                        }
                    }
                    IconButton(onClick = { /* doSomething() */ }) {
                        Icon(Icons.Filled.Favorite, contentDescription = "Localized description")
                    }
                    TooltipBox(
                        positionProvider =
                            TooltipDefaults.rememberTooltipPositionProvider(
                                TooltipAnchorPosition.Above
                            ),
                        tooltip = {
                            PlainTooltip(
                                modifier =
                                    Modifier.semantics {
                                        // TODO(b/496338253): Remove this modifier once bug where
                                        //  tooltip text is not announced by a11y screen readers is
                                        //  resolved.
                                        liveRegion = LiveRegionMode.Assertive
                                        paneTitle = "Localized description"
                                    }
                            ) {
                                Text("Localized description")
                            }
                        },
                        state = rememberTooltipState(),
                    ) {
                        IconButton(onClick = { /* doSomething() */ }) {
                            Icon(
                                Icons.Filled.MoreVert,
                                contentDescription = "Localized description",
                            )
                        }
                    }
                },
            )
            Column(
                Modifier.fillMaxWidth()
                    .padding(horizontal = 16.dp)
                    .verticalScroll(rememberScrollState())
            ) {
                Text(text = remember { LoremIpsum().values.first() })
            }
        }
    }
}
Jetpack Compose beyond MaterialFree components, screens and templates for apps that don’t look like Google’s. Copy them into your app, or let your coding agent add them.Browse for free

Content updated:
